Pre-processing and analysis of feature barcode single-cell RNA-seq data with KITE.¶

In this notebook, we will perform pre-processing and analysis of 10x Genomics pbmc_1k_protein_v3 feature barcoding dataset using the Kallisto Indexing and Tag Extraction (KITE) workflow, implemented with a wrapper called kb. It was developed by Kyung Hoi (Joseph) Min and A. Sina Booeshaghi.

In Feature Barcoding assays, cellular data are recorded as short DNA sequences using procedures adapted from single-cell RNA-seq. The KITE workflow generates a "Mismatch Map" containing the sequences of all Feature Barcodes used in the experiment as well as all of their single-base mismatches. The Mismatch Map is used to produce transcipt-to-gene (.t2g) and fasta (.fa) files to be used as inputs for kallisto. An index is made with kallisto index, then kallisto | bustools effectively searches the sequencing data for the sequences in the Mismatch Map.

Pre-processing¶

Download the data¶

Note: We use the -O option for wget to rename the files to easily identify them.

%%time
!wget -q https://caltech.box.com/shared/static/asmj4nu90ydhsrk3pm7aaxu00cnnfige.txt -O checksums.txt
!wget -q https://caltech.box.com/shared/static/mp2vr3p6dztdyatuag8ir3cektmrztg8.gz -O pbmc_1k_protein_v3_antibody_S2_L001_R1_001.fastq.gz
!wget -q https://caltech.box.com/shared/static/f3payi1za7mn0jfai7vm10sy3yqwgpqh.gz -O pbmc_1k_protein_v3_antibody_S2_L001_R2_001.fastq.gz
!wget -q https://caltech.box.com/shared/static/e112bbczh9o1rl6gfin36bqp0ga7uvdy.gz -O pbmc_1k_protein_v3_antibody_S2_L002_R1_001.fastq.gz
!wget -q https://caltech.box.com/shared/static/3ve2axc8dr8v5nnrhmynrdgpqj6xg42k.gz -O pbmc_1k_protein_v3_antibody_S2_L002_R2_001.fastq.gz

CPU times: user 477 ms, sys: 86.2 ms, total: 563 ms
Wall time: 1min

Then, we verify the integrity of the files we downloaded to make sure they were not corrupted during the download.

1	`!md5sum -c checksums.txt --ignore-missing`

pbmc_1k_protein_v3_antibody_S2_L001_R1_001.fastq.gz: OK
pbmc_1k_protein_v3_antibody_S2_L001_R2_001.fastq.gz: OK
pbmc_1k_protein_v3_antibody_S2_L002_R1_001.fastq.gz: OK
pbmc_1k_protein_v3_antibody_S2_L002_R2_001.fastq.gz: OK

Install `kb`¶

Install kb for running the kallisto|bustools workflow.

1	`!pip install --quiet git+https://github.com/pachterlab/kb_python@devel`

[K     |████████████████████████████████| 51kB 2.6MB/s
[K     |████████████████████████████████| 13.2MB 314kB/s
[K     |████████████████████████████████| 112kB 43.4MB/s
[?25h  Building wheel for kb-python (setup.py) ... [?25l[?25hdone
  Building wheel for loompy (setup.py) ... [?25l[?25hdone
  Building wheel for numpy-groupies (setup.py) ... [?25l[?25hdone

Build the feature barcode mismatch index¶

kb is able to generate a FASTA file containing all hamming distance < 2 variants of the feature barcodes and create a kallisto index of these sequences. But it in order to do so, we first need to prepare a TSV containing feature barcode sequences in the first column and the feature barcode names in the second.

First, we download the feature reference file provided by 10x Genomics.

1	`!wget -q http://cf.10xgenomics.com/samples/cell-exp/3.0.0/pbmc_1k_protein_v3/pbmc_1k_protein_v3_feature_ref.csv`

Let's load it in as a Pandas DataFrame.

import pandas as pd

df = pd.read_csv('pbmc_1k_protein_v3_feature_ref.csv')
df

	id	name	read	pattern	sequence	feature_type
0	CD3	CD3_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	AACAAGACCCTTGAG	Antibody Capture
1	CD4	CD4_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	TACCCGTAATAGCGT	Antibody Capture
2	CD8a	CD8a_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	ATTGGCACTCAGATG	Antibody Capture
3	CD14	CD14_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	GAAAGTCAAAGCACT	Antibody Capture
4	CD15	CD15_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	ACGAATCAATCTGTG	Antibody Capture
5	CD16	CD16_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	GTCTTTGTCAGTGCA	Antibody Capture
6	CD56	CD56_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	GTTGTCCGACAATAC	Antibody Capture
7	CD19	CD19_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	TCAACGCTTGGCTAG	Antibody Capture
8	CD25	CD25_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	GTGCATTCAACAGTA	Antibody Capture
9	CD45RA	CD45RA_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	GATGAGAACAGGTTT	Antibody Capture
10	CD45RO	CD45RO_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	TGCATGTCATCGGTG	Antibody Capture
11	PD-1	PD-1_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	AAGTCGTGAGGCATG	Antibody Capture
12	TIGIT	TIGIT_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	TGAAGGCTCATTTGT	Antibody Capture
13	CD127	CD127_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	ACATTGACGCAACTA	Antibody Capture
14	IgG2a	IgG2a_control_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	CTCTATTCAGACCAG	Antibody Capture
15	IgG1	IgG1_control_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	ACTCACTGGAGTCTC	Antibody Capture
16	IgG2b	IgG2b_control_TotalSeqB	R2	5PNNNNNNNNNN(BC)NNNNNNNNN	ATCACATCGTTGCCA	Antibody Capture

We'll convert this dataframe into a TSV format that kb requires.

1 2	`df[['sequence', 'id']].to_csv('features.tsv', index=None, header=None, sep='\t') !cat features.tsv`

AACAAGACCCTTGAG CD3
TACCCGTAATAGCGT CD4
ATTGGCACTCAGATG CD8a
GAAAGTCAAAGCACT CD14
ACGAATCAATCTGTG CD15
GTCTTTGTCAGTGCA CD16
GTTGTCCGACAATAC CD56
TCAACGCTTGGCTAG CD19
GTGCATTCAACAGTA CD25
GATGAGAACAGGTTT CD45RA
TGCATGTCATCGGTG CD45RO
AAGTCGTGAGGCATG PD-1
TGAAGGCTCATTTGT TIGIT
ACATTGACGCAACTA CD127
CTCTATTCAGACCAG IgG2a
ACTCACTGGAGTCTC IgG1
ATCACATCGTTGCCA IgG2b

Finally, we use kb to generate the mismatch kallisto index.

1	`!kb ref -i mismatch.idx -f1 mismatch.fa -g t2g.txt --workflow kite features.tsv`

[2021-03-31 23:30:15,970]    INFO Generating mismatch FASTA at mismatch.fa
[2021-03-31 23:30:15,982]    INFO Creating transcript-to-gene mapping at t2g.txt
[2021-03-31 23:30:15,986]    INFO Indexing mismatch.fa to mismatch.idx

Generate a feature count matrix in H5AD format¶

The following command will generate an RNA count matrix of cells (rows) by genes (columns) in H5AD format, which is a binary format used to store Anndata objects. Notice we are providing the index and transcript-to-gene mapping we generated in the previous step to the -i and -g arguments respectively. Also, these reads were generated with the 10x Genomics Chromium Single Cell v3 Chemistry, hence the -x 10xv3 argument. To view other supported technologies, run kb --list.

Note: If you would like a Loom file instead, replace the --h5ad flag with --loom. If you want to use the raw matrix output by kb instead of their H5AD or Loom converted files, omit these flags.

%%time
!kb count --h5ad -i mismatch.idx -g t2g.txt -x 10xv3 --workflow kite -t 2 \
pbmc_1k_protein_v3_antibody_S2_L001_R1_001.fastq.gz \
pbmc_1k_protein_v3_antibody_S2_L001_R2_001.fastq.gz \
pbmc_1k_protein_v3_antibody_S2_L002_R1_001.fastq.gz \
pbmc_1k_protein_v3_antibody_S2_L002_R2_001.fastq.gz

[2021-03-31 23:30:17,474]    INFO Using index mismatch.idx to generate BUS file to . from
[2021-03-31 23:30:17,474]    INFO         pbmc_1k_protein_v3_antibody_S2_L001_R1_001.fastq.gz
[2021-03-31 23:30:17,474]    INFO         pbmc_1k_protein_v3_antibody_S2_L001_R2_001.fastq.gz
[2021-03-31 23:30:17,474]    INFO         pbmc_1k_protein_v3_antibody_S2_L002_R1_001.fastq.gz
[2021-03-31 23:30:17,474]    INFO         pbmc_1k_protein_v3_antibody_S2_L002_R2_001.fastq.gz
[2021-03-31 23:32:02,567]    INFO Sorting BUS file ./output.bus to ./tmp/output.s.bus
[2021-03-31 23:32:18,183]    INFO Whitelist not provided
[2021-03-31 23:32:18,183]    INFO Copying pre-packaged 10XV3 whitelist to .
[2021-03-31 23:32:19,157]    INFO Inspecting BUS file ./tmp/output.s.bus
[2021-03-31 23:32:31,284]    INFO Correcting BUS records in ./tmp/output.s.bus to ./tmp/output.s.c.bus with whitelist ./10xv3_whitelist.txt
[2021-03-31 23:32:49,746]    INFO Sorting BUS file ./tmp/output.s.c.bus to ./output.unfiltered.bus
[2021-03-31 23:33:01,416]    INFO Generating count matrix ./counts_unfiltered/cells_x_features from BUS file ./output.unfiltered.bus
[2021-03-31 23:33:03,924]    INFO Reading matrix ./counts_unfiltered/cells_x_features.mtx
[2021-03-31 23:33:05,698]    INFO Writing matrix to h5ad ./counts_unfiltered/adata.h5ad
CPU times: user 1.3 s, sys: 180 ms, total: 1.48 s
Wall time: 2min 49s

Analysis¶

In this part of the tutorial, we will load the RNA count matrix generated by kb count into Python and cluster the cells with Leiden.

Install packages¶

Google Colab does not come with Scanpy, python-igraph, or louvain (but comes with matplotlib, numpy, pandas, and scipy).

1	`!pip --quiet install leidenalg scanpy MulticoreTSNE`

Import packages¶

1
2
3

import anndata
import numpy as np
import scanpy as sc

1	`adata = anndata.read_h5ad('counts_unfiltered/adata.h5ad')`

adata

AnnData object with n_obs × n_vars = 124716 × 17
    var: 'feature_name'

1	`adata.obs.head()`


barcode
AAACCCAAGAAACCCA
AAACCCAAGACGAGGA
AAACCCAAGAGTGTGT
AAACCCAAGAGTGTTG
AAACCCAAGATAGCAC

1	`adata.var`

	feature_name
feature_id
CD3	CD3
CD4	CD4
CD8a	CD8a
CD14	CD14
CD15	CD15
CD16	CD16
CD56	CD56
CD19	CD19
CD25	CD25
CD45RA	CD45RA
CD45RO	CD45RO
PD-1	PD-1
TIGIT	TIGIT
CD127	CD127
IgG2a	IgG2a
IgG1	IgG1
IgG2b	IgG2b

Plot counts¶

1	`sc.pp.filter_cells(adata, min_counts=0)`

1	`sc.pp.filter_genes(adata, min_counts=0)`

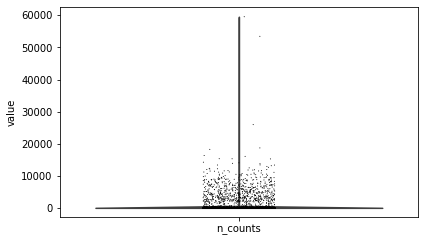

1	`sc.pl.violin(adata, keys='n_counts')`

png

1	`adata.obs['n_countslog'] = np.log1p(adata.obs['n_counts'])`

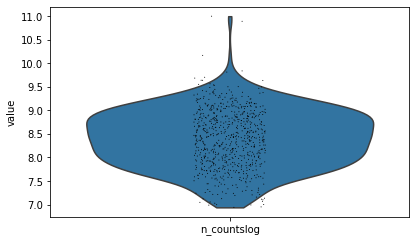

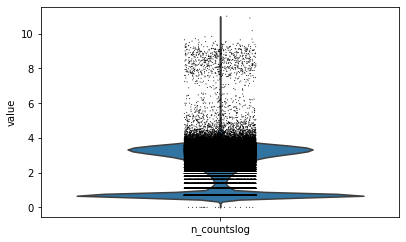

1	`sc.pl.violin(adata, keys='n_countslog')`

png

1	`adata.obs.index`

Index(['AAACCCAAGAAACCCA', 'AAACCCAAGACGAGGA', 'AAACCCAAGAGTGTGT',
       'AAACCCAAGAGTGTTG', 'AAACCCAAGATAGCAC', 'AAACCCAAGATGAGTC',
       'AAACCCAAGATGGTAC', 'AAACCCAAGATTCGTT', 'AAACCCAAGATTTGGG',
       'AAACCCAAGCAAGCAT',
       ...
       'TTTGTTGTCGTCGCCT', 'TTTGTTGTCGTTGACG', 'TTTGTTGTCTAACCGG',
       'TTTGTTGTCTATGTAG', 'TTTGTTGTCTCAACAA', 'TTTGTTGTCTCACTCA',
       'TTTGTTGTCTCTTCGA', 'TTTGTTGTCTCTTGGT', 'TTTGTTGTCTGCACTT',
       'TTTGTTGTCTGCGACA'],
      dtype='object', name='barcode', length=124716)

1
2
3

sc.pp.filter_cells(adata, min_counts=1000)
sc.pl.violin(adata, keys='n_countslog', title="kallisto UMI counts")
adata

png

AnnData object with n_obs × n_vars = 725 × 17
    obs: 'n_counts', 'n_countslog'
    var: 'feature_name', 'n_counts'

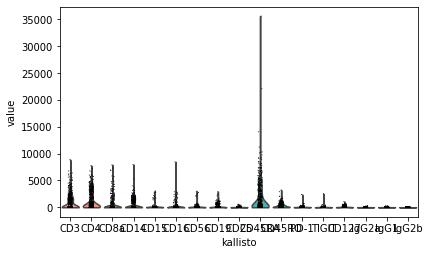

Here are violin plots for each Feature Barcode (antibody-oligo conjugates, x-axis) across all cells.

1	`sc.pl.violin(adata, keys=list(adata.var.index)[-17:], xlabel='kallisto')`

png

Cluster with Leiden¶

1	`sc.pp.normalize_per_cell(adata, counts_per_cell_after=10000)`

1 2	`sc.pp.neighbors(adata) sc.tl.umap(adata)`

1	`sc.tl.leiden(adata, resolution=0.05)`

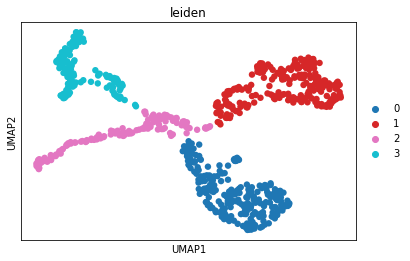

1	`sc.pl.umap(adata, color='leiden', palette='tab10')`

png

Embedding and Antibody Quantification¶

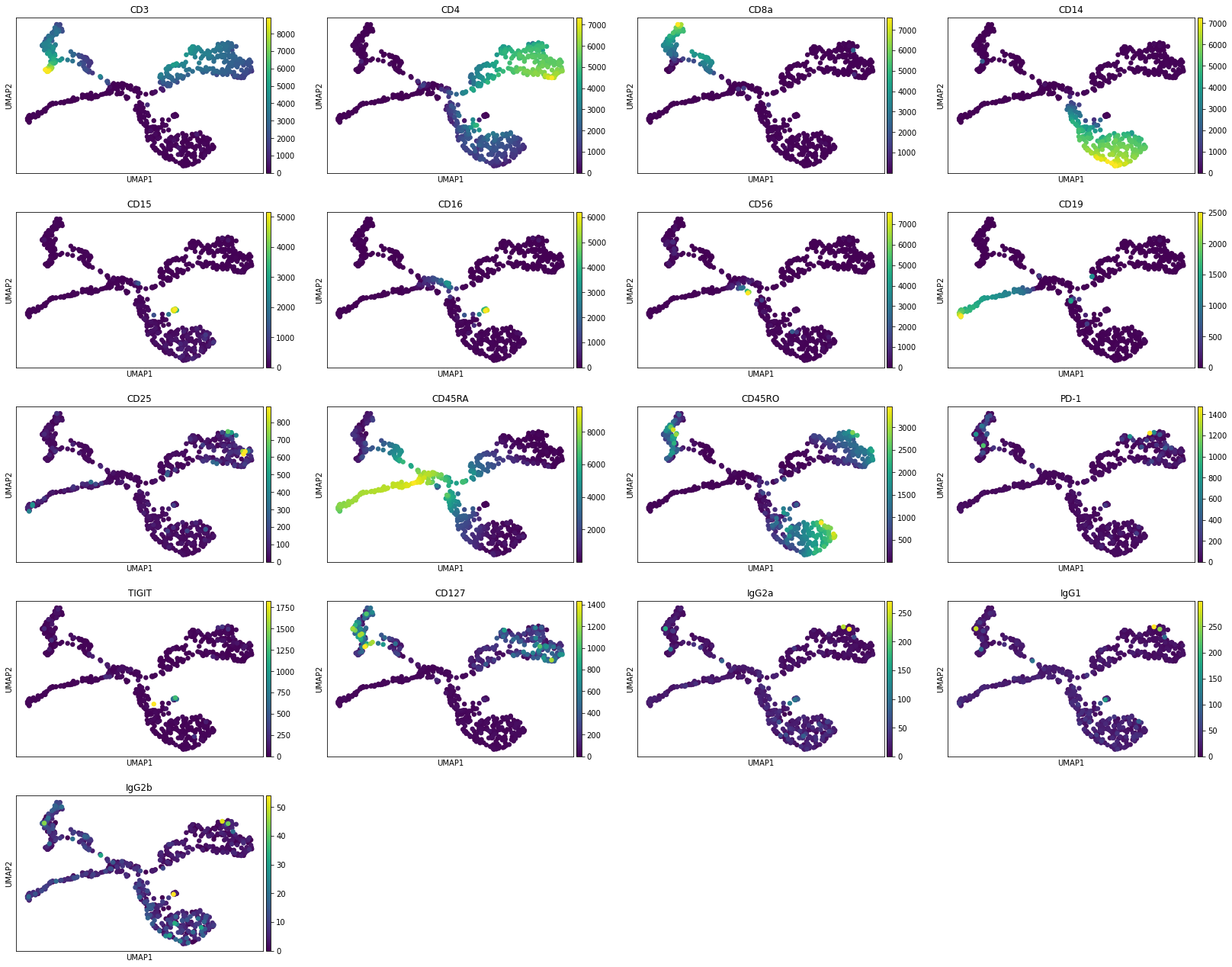

1	`sc.pl.umap(adata, color=adata.var.index)`

png

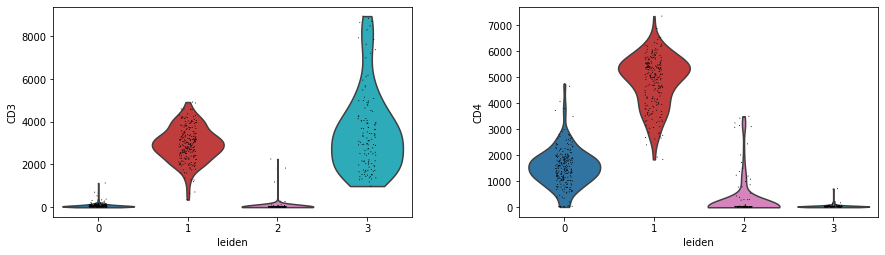

1	`sc.pl.violin(adata, keys=list(adata.var.index[:2]), groupby='leiden')`

png
