# An introduction to single-cell RNA-seq¶

#### *Division of Biology and Biological Engineering, California Institute of Technology¶

The rapid development of single-cell genomics methods starting in 2009 has created unprecedented opportunity for highly resolved measurements of cellular states. Among such methods, single-cell RNA-seq (scRNA-seq) is having a profound impact on biology. Here we introduce some of the key concepts of single-cell RNA-seq technologies, with a focus on droplet based methods.

To learn how to pre-process and analyze single-cell RNA-seq explore the following Google Colab notebooks that explain how to go from reads to results:

• Pre-processing and quality control [Python, R]
• Getting started with analysis [Python, R]
• Building and annotating an atlas [Python, R]

The kallistobus.tools tutorials site has a extensive list of tutorials and vignettes on single-cell RNA-seq.

## Setup¶

This notebook is a "living document". It downloads data and performs computations. As such it requires the installation of some python packages, which are installed with the commands below. In addition to running on Google Colab, the notebook can be downloaded and run locally on any machine which has python3 installed.

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 #@title Install packages %%capture !pip install matplotlib !pip install scikit-learn !pip install numpy !pip install scipy !pip install anndata import numpy as np import matplotlib.cm as cm import matplotlib.pyplot as plt import matplotlib.colors as mplcol import matplotlib.font_manager import matplotlib as mpl import pandas as pd import io import anndata from scipy.stats import binom from scipy.stats import poisson from scipy.sparse import csr_matrix from scipy.io import mmread from sklearn import linear_model from IPython.display import HTML from mizani.breaks import date_breaks from mizani.formatters import date_format # Only pandas >= v0.25.0 supports column names with spaces in querys import plotnine as p import requests import warnings import colorsys warnings.filterwarnings("ignore") # plotnine has a lot of MatplotlibDeprecationWarning's import seaborn as sns sns.set_context("notebook", font_scale=1.5, rc={"lines.linewidth": 2.5}) fsize=20 plt.rcParams.update({'font.size': fsize}) %config InlineBackend.figure_format = 'retina'

## Motivation¶

The goal of single-cell transcriptomics is to measure the transcriptional states of large numbers of cells simultaneously. The input to a scRNA-seq method is a collection of cells, possibly from intact tissue, or in dissociated form. Formally, the desired output is a transcripts x cells or genes x cells matrix that describes, for each cell, the abundance of its constituent transcripts or genes. More generally, single-cell genomics methods seek to measure not just transcriptional state, but other modalities in cells, e.g. protein abundances, epigenetic states, cellular morphology, etc.

The ideal single-cell technology should thus:

• Be universal in terms of cell size, type and state.
• Perform in situ measurements.
• Have no minimum input requirements.
• Assay every cell, i.e. have a 100% capture rate.
• Detect every transcript in every cell, i.e. have 100% sensitivity.
• Identify individual transcripts by their full-length sequence.
• Assign transcripts correctly to cells, e.g. no doublets.
• Be compatible with additional multimodal measurements.
• Be cost effective per cell.
• Be easy to use.
• Be open source so that it is transparent, and results from it reproducible.

There is no method satisfying all of these requirements, however progress has been rapid. The development of single-cell RNA-seq technologies and their adoption by biologists, has been remarkable. Svensson et al. 2019 describes a database of articles which present single-cell RNA-seq experiments, and the graph below, rendered from the current version of the database, makes clear the exponential growth in single-cell transcriptomics:

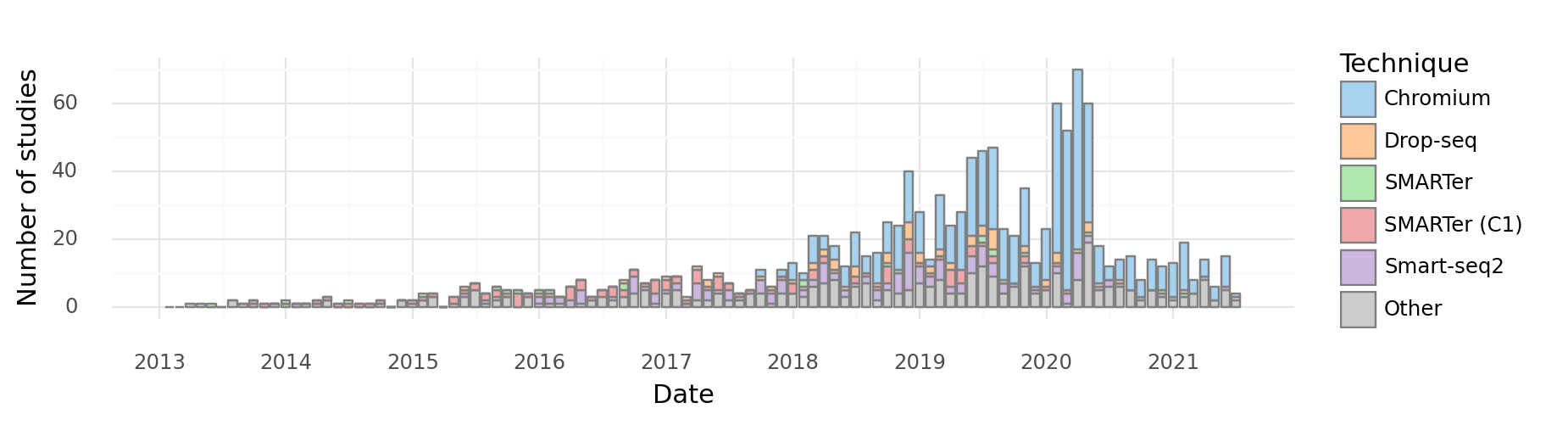

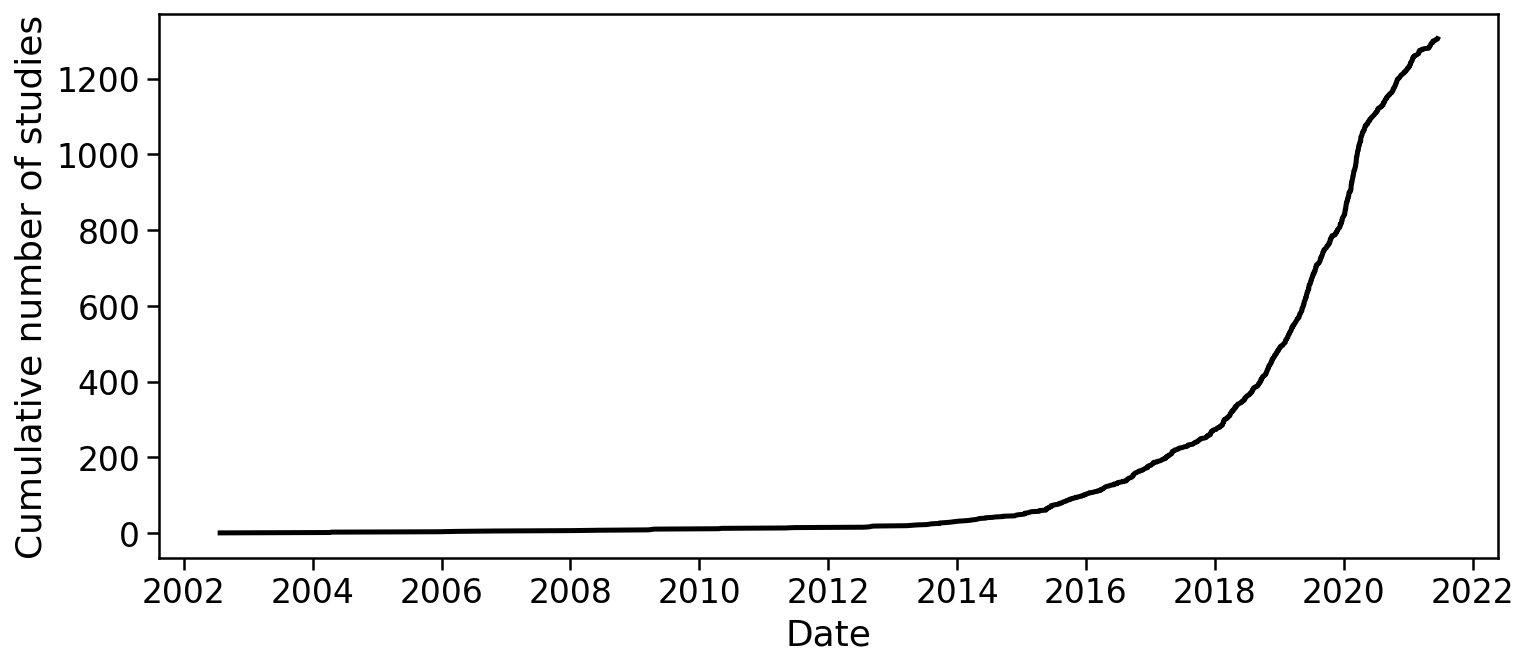

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 #@title Growth of single-cell RNA-seq df = pd.read_csv('http://nxn.se/single-cell-studies/data.tsv', sep='\t') # converts string to date format, can only be run once! df['Date'] = pd.to_datetime(df['Date'], format='%Y%m%d') # converts string of reported cells total to float, can only be run once! df['Reported cells total'] = df['Reported cells total'].str.replace(',', '').map(float) # plot number of studies over time fig, ax = plt.subplots(figsize=(12, 5)) papers = pd.read_csv('http://nxn.se/single-cell-studies/data.tsv', sep='\t') papers['Datetime'] = pd.to_datetime(papers['Date'], format='%Y%m%d') papers = papers.sort_values("Date") papers["count"] = 1 x = papers.Datetime y = papers["count"].groupby(papers.Datetime.dt.time).cumsum() ax.plot(x, y, color="k") ax.set_xlabel("Date") ax.set_ylabel("Cumulative number of studies") plt.show()

There are many different scRNA-seq technologies in use and under development, but broadly they fall into a few categories - well-based methods (e.g. Fluidigm SMARTer C1, Smart-seq2) - droplet-based methods (e.g. Drop-seq, InDrops, 10X Genomics Chromium) - spatial transcriptomics approaches (e.g. MERFISH, SEQFISH)

At the time of initial writing of this document (2019), droplet-based approaches have become popular due to their relative low-cost, easy of use, and scalability. This is evident in a breakdown of articles by technology used:

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 #@title Technologies used def tidy_split(df, column, sep='|', keep=False): indexes = list() new_values = list() df = df.dropna(subset=[column]) for i, presplit in enumerate(df[column].astype(str)): values = presplit.split(sep) if keep and len(values) > 1: indexes.append(i) new_values.append(presplit) for value in values: indexes.append(i) new_values.append(value) new_df = df.iloc[indexes, :].copy() new_df[column] = new_values return new_df ts = pd.Timestamp tdf = tidy_split(df, 'Technique', ' & ') t_dict = {k: k for k in tdf['Technique'].value_counts().head(5).index} tdf['Technique'] = tdf['Technique'].map(lambda s: t_dict.get(s, 'Other')) techs = list( tdf['Technique'] .value_counts() .sort_index() .index .difference(['Other']) ) techs.append('Other') tdf['Technique'] = ( pd.Categorical( tdf['Technique'], categories=techs, ordered=True ) ) def desaturate(color, prop): # Check inputs # if not 0 <= prop <= 1: # raise ValueError("prop must be between 0 and 1") # Get rgb tuple rep rgb = mplcol.colorConverter.to_rgb(color) # Convert to hls h, l, s = colorsys.rgb_to_hls(*rgb) # Desaturate the saturation channel # l *= prop l = 0.8 # Convert back to rgb new_color = colorsys.hls_to_rgb(h, l, s) hex_color = '#{:02x}{:02x}{:02x}'.format(*map(lambda c: int(c * 255), new_color)) return hex_color # lighten matplotlib default colors clrs = list(map(lambda c: desaturate(c, 1.2), ['C0', 'C1', 'C2', 'C3', 'C4', 'black'])) #### Plot number of studies per month by technique per_month = ( tdf .groupby('Technique') .resample('1M', on='Date') .count()['DOI'] .reset_index() ) p.options.figure_size = (9, 2) fig = ( p.ggplot( p.aes(x='Date', y='DOI', fill='Technique'), data=per_month.query('Date > @ts("20130101T010101")') ) + p.geom_bar(stat='identity', color='grey') + p.theme_minimal(base_family='DejaVu Sans') + p.scale_x_datetime( breaks=date_breaks('1 years'), labels=date_format('%Y') ) + p.labs(y='Number of studies') + p.scale_fill_manual(clrs) ) fig

<ggplot: (-9223363288449985206)>


We therefore restrict this exposition to droplet-based technologies.

## Droplet-based methods¶

Droplet based single-cell RNA-seq methods were popularized by a pair of papers published concurrently in 2015: - Macosko et al., Highly parallel genome-wide expression profiling of individual cells using nanoliter droplets, 2015. DOI:10.1016/j.cell.2015.05.002 - describes Drop-seq. - Klein et al., Droplet barcoding for single-cell transcriptomics applied to embryonic stem cells, 2015. DOI:10.1016/j.cell.2015.04.044 - descibes inDrops.

Both of the methods makes use of developments in microfluidics published in: - Song, Chen, Ismagilov, Reactions in droplets in microfluidic channels, 2006. DOI:10.1002/anie.200601554 - Guo, Rotem, Heyman and Weitz, Droplet microfluidics for high-throughput biological assays, 2012. DOI:10.1039/C2LC21147E

### Overview¶

An overview of how a droplet based scRNA-seq method works is illustrated in a figure from the Drop-seq Macosko et al. 2015 paper:

A microfluidic device is used to generate an emulsion, which consists of aqueous droplets in oil. The droplets are used to encapsulate cells, beads and reagents. In other words, each droplet is a "mini laboratory" in which the RNA from a single-cell can be captured and prepared for identification. Thus, the consistuent parts are as follows:

• an emulsion (white circles containing beads and cells on the right hand-side of the figure).
• dissociated cells (depicted as odd-shaped colored objects in the figure).
• beads (flowing in from the left hand side of the figure).

### Emulsions¶

The foundation of droplet based single-cell RNA-seq methods are mono-dispersed emulsions. Mono-dispersed refers to the requirements that droplets are of (near) uniform size. Mono-dispersed emulsions can be generated with a microfluidic device, as shown below. The droplets are being "pinched off" at the junction, and one can see a polystyrene bead being captured in one droplet, while others are empty.

The movie is from the McCarolll Drop-seq tutorial courtesy of Patrick Stumpf, Matthew Rose-Zerilli, Rosanna Smith, Martin Fischlechner & Jonathan West at the Centre for Hybrid Biodevices & Cancer Sciences Unit at the University of Southampton.

The figure above, reproduce from Klein et al. 2015, shows the procedure used to make hydrogel beads for inDrops. Every bead contains the same barcode sequence, while the barcode sequences on two different beads are distinct.

The barcode and UMI structure for a variety of technologies is viewable in a compilation by Xi Chen.

### Single cell suspensions¶

In order to assay the transcriptomes of individual cells with droplet-based single-cell RNA-seq technologies, it is necessary to first dissociate tissue. Procedures for tissue dissociation are varied, and highly dependent on the organism, type of tissue, and many other factors. Protocols may be be enzymatic, but can also utilize mechanical dissociators. The talk below provides an introduction to tissue handling and dissociation.

 1 2 3 #@title Tissue handling and dissociation from IPython.display import HTML HTML('')

## Statistics of beads & cells in droplets¶

### The binomial distribution¶

An understanding of droplet-based single-cell RNA-seq requires consideration of the statistics describing the capture of cells and beads in droplets. Suppose that in an experiment multiple droplets have been formed, and focus on one of the droplets. Assume that the probability that any single one of $n$ cells were captured inside it is $p$. We can calculate the probability that $k$ cells have been captured in the droplet as follows:

$$\mathbb{P}({\mbox Droplet\ contains\ k\ cells}) = \binom{n}{k}p^k(1-p)^{n-k}.$$

The expected number of cells in the droplet is

$$\lambda := \sum_{k=0}^n k \binom{n}{k}p^k(1-p)^{n-k} = n \cdot p.$$

We plot this distribution on number of cells in a droplet below. It is called the Binomial distribution and has two parameters: $n$ and $p$.

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 #@title Binomial distribution { run: "auto" } n = 10#@param {type:"integer"} p = 0.02 #@param {type:"slider", min:0, max:1, step:0.01} fig, ax = plt.subplots(figsize=(7, 4)) s = 10 x = np.arange(s) y = binom.pmf(x,n,p) ax.bar(x, y, color="k", label="Binomial n, p = ({}, {})".format(n,p)) ax.set_xlabel("Number of Trials") ax.set_ylabel("Probability") ax.set_xticks(x) ax.legend() plt.show()

With $n=10$ and $p=0.02$, it's quite probable that the droplet is empty, and while possible that it contains one cell, unlikely that it has 2 or more. This is a good regime for a single-cell experiment; we will see that it is problematic if two cells are captured in a single droplet. Empty droplets are not problematic in the sense that they will not lead to data, and can therefore be ignored.

### The Poisson distribution¶

The Binomial distribution can be difficult to work with in practice. Suppose, for example, that $n=1000$ and $p=0.002$. Suppose that we are interested in the probability of seeing 431 cells in a droplet. This probability is given by

$$\binom{1000}{421}0.02^{421}(1-0.02)^{1000-431},$$

which is evidently a difficult number to calculate exactly.

A practical alternative to the binmomial is the Poisson distribution. The Poisson distribution has one parameter, and its support is the non-negative integers. A random variable $X$ is Poisson distributed if $$\mathbb{P}(X=k)\quad = \quad \frac{e^{-\lambda}\lambda^k}{k!}.$$

The Poisson limit theorem states that if $p_n$ is a sequence of real numbers in $[0,1]$ with the sequence $np_n$ converging to to a finite limit $\lambda$, then $${\mbox lim}_{n \rightarrow \infty} \binom{n}{k}p_n^{k}(1-p_n)^{n-k} = e^{-\lambda}\frac{\lambda^k}{k!}.$$

Thus, the Poisson distribution serves as a useful, tractable distribution to work with in lieu of the Binomial distribution for large $n$ and small $p$.

The histogram below can be used to explore the Poisson and its relationship to the binomial

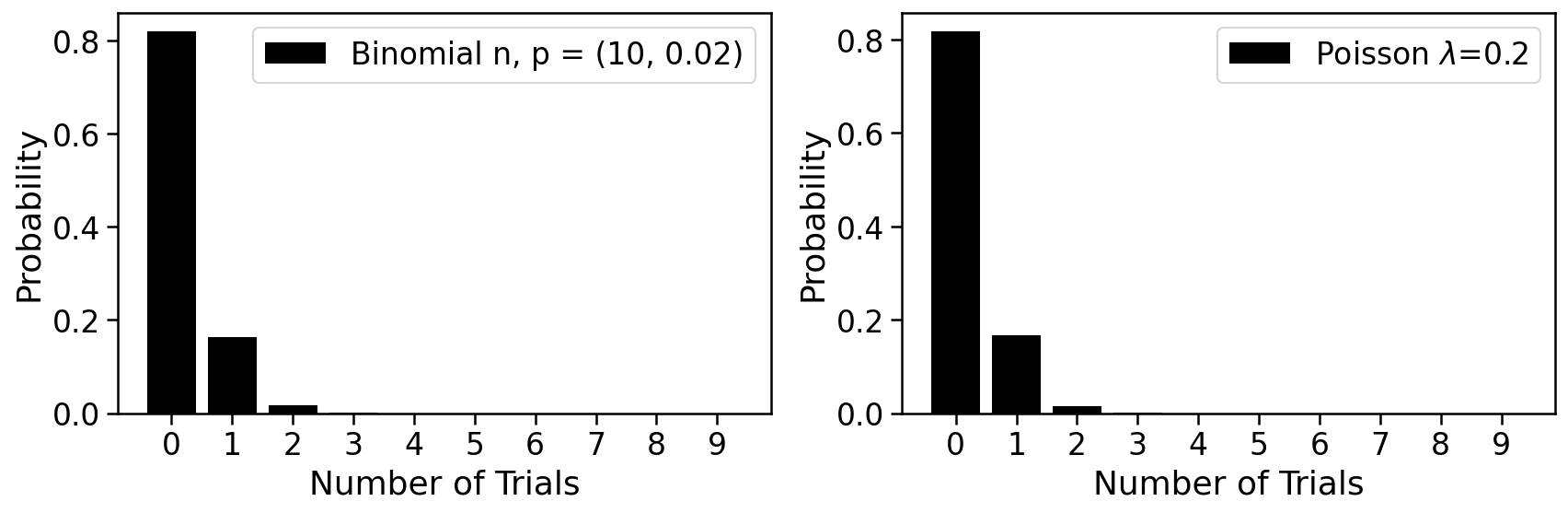

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 #@title Binomial - Poisson comparison { run: "auto" } n = 10#@param {type:"integer"} p = 0.02 #@param {type:"slider", min:0, max:1, step:0.01} s = 10 lambda_param = n*p fig, ax = plt.subplots(figsize=(14, 4), ncols=2) x = np.arange(s) y = poisson.pmf(x, lambda_param) ax[0].bar(x, y, color="k", label="Binomial n, p = ({}, {})".format(n,p)) ax[0].set_xlabel("Number of Trials") ax[0].set_ylabel("Probability") ax[0].set_xticks(x) ax[0].legend() x = np.arange(s) y = binom.pmf(x,n,p) ax[1].bar(x, y, color="k", label="Poisson $\lambda$={}".format(lambda_param)) ax[1].set_xlabel("Number of Trials") ax[1].set_ylabel("Probability") ax[1].set_xticks(x) ax[1].legend() plt.show()

We therefore posit that

$$\mathbb{P}({\mbox Droplet\ contains\ k\ cells}) = \frac{e^{-\lambda}\lambda^k}{k!}$$ and
$$\mathbb{P}({\mbox Droplet\ contains\ j\ beads}) = \frac{e^{-\mu}\mu^j}{j!}.$$

## Droplet tuning¶

The cell capture rate is the probability that a droplet has at least one bead, and is given by $1-e^{-\mu}$.

The bead overload rate is the rate at which captured single cells are associated with two or more different barcodes, which will happen when multiple beads are loaded into a droplet with one cell. The probability this happens is $$\frac{1-e^{-\mu}-\mu e^{-\mu}}{1-e^{-\mu}}.$$

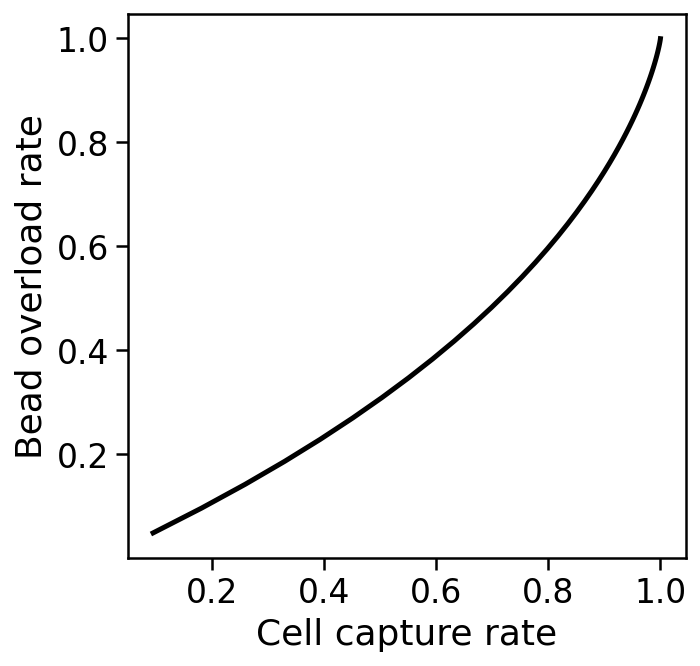

  1 2 3 4 5 6 7 8 9 10 11 12 13 #@title Tradeoff { run: "auto" } fig, ax = plt.subplots(figsize=(5,5)) mu = np.arange(0, 10, 0.1) x = 1 - np.exp(-mu) y = (1 - np.exp(-mu)-mu*np.exp(-mu))/(1-np.exp(-mu)) ax.plot(x, y, color='k') ax.set_xlabel("Cell capture rate") ax.set_ylabel("Bead overload rate") plt.show()

In order to circumvent the limit posed by a Poisson process for beads in droplets, the inDrops method uses tightly packed hydrogel beads that can be injected into droplets without loss. This approach, which leads to "sub-Poisson loading" is also used by 10X Genomics, and allows for increased capture rate.

The difference is shown in two videos from the Abate lab linked to below. The first video, shows beads loaded being loaded in droplets with Poisson statistics:

 1 2 #@title Poisson loading HTML('')

The next video shows sub-Poisson loading with hydrogel beads. In this case the flow rate has been set so that exactly two beads are situated in each droplet.

 1 2 #@title Sub-Poisson loading { run: "auto" } HTML('')

The following shows the types of beads used for different droplet-based scRNA-seq methods, and associated properties:

Property Drop-seq inDrops 10x genomics
Dissolvable No No Yes
Barcode release No UV release Chemical release
Customizable Demonstrated Not shown Feasible
Licensing Open source Open Source Proprietary
Availability Beads are sold Commercial Commercial

### Barcode collisions¶

Barcode collisions arise when two cells are separately encapsulated with beads that happen to contain identical barcodes.

For $n$ assayed cells with $m$ barcodes, the barcode collision rate is the expected proportion of assayed cells that did not receive a unique barcode, i.e.

$$1-\frac{\mathbb{E}[\mbox{cells with a unique barcode}]}{\mbox{number of cells}}$$

$$= 1-(1-\frac{1}{m})^{n-1} \approx 1-\left(\frac{1}{e}\right)^\frac{n}{m}.$$

Avoiding barcode collisions requires high barcode diversity, i.e. a small ratio of $\frac{n}{m}$.

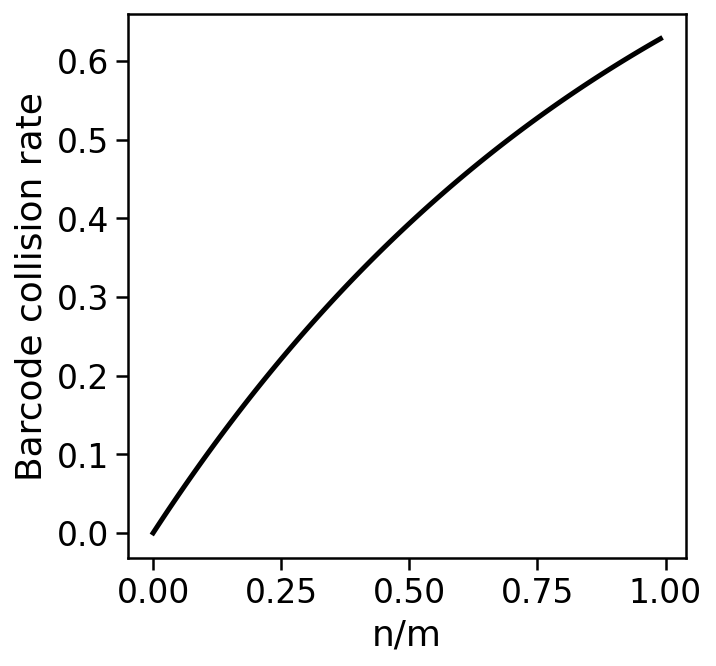

  1 2 3 4 5 6 7 8 9 10 11 12 13 #@title Diversity and collisions { run: "auto" } fig, ax = plt.subplots(figsize=(5,5)) bc = np.arange(0, 1, 0.01) x = bc y = 1 - np.exp(-bc) ax.plot(x, y, color='k') ax.set_xlabel("n/m") ax.set_ylabel("Barcode collision rate") plt.show()

### Barcode diversity and length¶

A 1% barcode collision rate requires a barcode diversity of ~1%, i.e. the number of barcodes should be 100 times the number of cells. The number of barcodes from a sequence of length $L$ is $4^L$. Therefore, to assay $n$ cells, the barcode sequence must be of length at least $log_4n+3\frac{1}{3}$. This is a minimum and does not account for the need to be robust to sequencing errors.

### Technical doublets¶

Technical doublets arise when two or more cells are captured in a droplet with a single bead. The technical doublet rate is therefore the probability of capturing two or more cells in a droplet given that at least one cell has been captured in a droplet:

$\frac{1-e^{-\lambda}-\lambda e^{-\lambda}}{1-e^{-\lambda}}$.

Note that "overloading" a droplet-based single-cell experiment by loading more cells while keeping flow rates constant will increase the number of technical doublets due to an effective increase in $\lambda$ and also the number of synthetic doublets due to an increase in barcode diversity.

#### The barnyard plot¶

Technical doublet rates can be measured by experiments in which a mixture of cells from two different species are assayed together. For example, if mouse and human cells are pooled prior to single-cell RNA-seq, the resultant reads ought to be assignable to either human or mouse. If a droplet contained a "mixed" doublet, i.e. two cells one of which is from human and the other from mouse, it will generate reads some of which can be aligned to mouse, and some to human.

An example from a 10X Genomics dataset (5k 1:1 mixture of fresh frozen human (HEK293T) and mouse (NIH3T3) cells) is shown in the plot below, which is called a Barnyard plot in Macosko et al. 2015.

 1 2 3 4 %%capture # Download a matrix of human and mouse !wget http://cf.10xgenomics.com/samples/cell-exp/3.0.0/hgmm_1k_v2/hgmm_1k_v2_filtered_feature_bc_matrix.tar.gz !tar -xvf hgmm_1k_v2_filtered_feature_bc_matrix.tar.gz

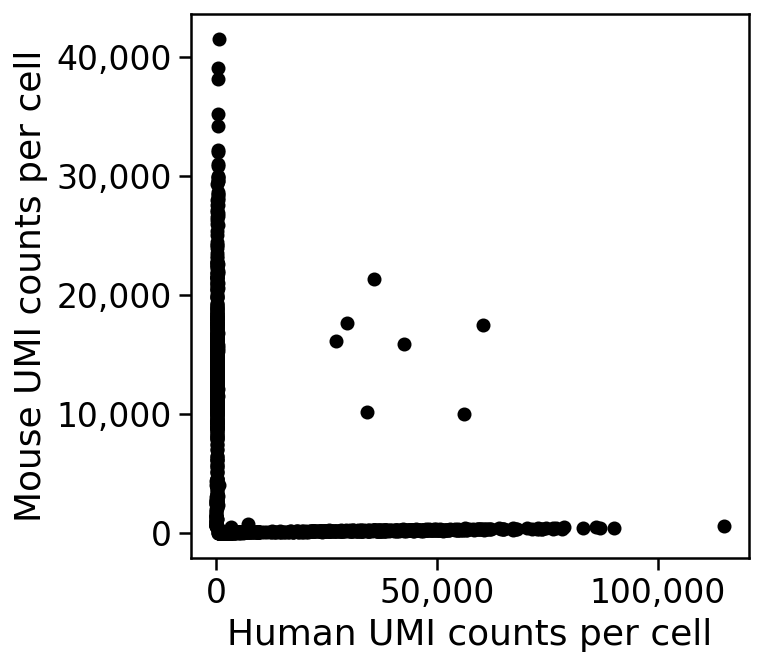

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 #@title Human & mouse PBMCs mtx = csr_matrix(mmread("/content/filtered_feature_bc_matrix/matrix.mtx.gz").T) genes = pd.read_csv("/content/filtered_feature_bc_matrix/features.tsv.gz", header=None, names=["gene_id", "gene_name", "extra"], sep="\t") cells = pd.read_csv("/content/filtered_feature_bc_matrix/barcodes.tsv.gz", header=None, names=["cell_barcode"], sep="\t") adata = anndata.AnnData(X=mtx, var=genes, obs=cells) adata.var["human"] = adata.var["gene_id"].str.contains("hg19").values x = (mtx[:,adata.var["human"].values]).sum(axis=1) y = (mtx[:,~adata.var["human"].values]).sum(axis=1) fig, ax = plt.subplots(figsize=(5,5)) x = np.asarray(x).reshape(-1) y = np.asarray(y).reshape(-1) ax.scatter(x, y, color='k') ax.set_xlabel("Human UMI counts per cell") ax.set_ylabel("Mouse UMI counts per cell") ax.xaxis.set_major_formatter(mpl.ticker.StrMethodFormatter('{x:,.0f}')) ax.yaxis.set_major_formatter(mpl.ticker.StrMethodFormatter('{x:,.0f}')) plt.show()

THe plot shows that there are only 7 doublets out of 5,000 cells in this experiment. This is an unusually small number and atypical of most experiments, where doublet rates are between 5%--15% (see DePasquale et al. 2018); perhaps the 5k human mouse PBMC dataset data is articularly "clean" as it is an advertisement distributed by 10X Genomics.

#### Bloom's correction¶

The 7 doublets identifiable by eye in the plot above are all mixed doublets, i.e. they contain one human and one mouse cell. However doublets may consist of two mouse cells, or two human cells. If the number of droplets containing at least one human cells is $n_1$, the number containing at least one mouse cell is $n_2$, and the number of mixed doublets is $n_{1,2}$, then an estimate for the actual doublet rate can be obtained from the calculation below (Bloom 2018):

Given $n_1, n_2$ and $n_{1,2}$ as described above (note that $n_1$ is the number of cells on the x axis + the number of mixed doublets and $n_2$ is the number of cells on the y axis + the number of mixed doublets), then in expectation

$$\frac{n_1}{N} \cdot \frac{n_2}{N} = \frac{n_{1,2}}{N},$$

where $N$ is the total number of droplets. From this we see that

$$\hat{N} = \frac{n_1 \cdot n_2}{n_{1,2}}.$$

This is the maximum likelihood Lincoln-Petersen estimator for population size from mark and recapture.

Let $\mu_1$ nad $\mu_2$ be the Poisson rates for the respective types of cells, i.e. the average number of cells of each type per droplet. Then

$$\hat{\mu}_1 = -\mbox{ln } \left( \frac{N-n_1}{N} \right)$$ and $$\hat{\mu}_2 = -\mbox{ln } \left( \frac{N-n_2}{N} \right).$$

From this the doublet rate $D$ can be estimated as

$$\hat{D} = 1 - \frac{(\mu_1+\mu_2)e^{-\mu_1+\mu_2}}{1-e^{-\mu_1-\mu_2}}.$$

### Biological doublets¶

Biological doublets arise when two cells form a discrete unit that does not break apart during disruption to form a single-cell suspension. Note that biological doublets cannot be detected in barnyard plots.

One approach to avoiding biological doublets is to perform single-nuclei RNA-seq. See, e.g. Habib et al., 2017. However, biological doublets are not necessarily just a technical artifact to be avoided. Halpern et al., 2018 utilizes biological doublets of hepatocytes and liver endothelial cells to assign tissue coordinates to liver endothelial cells via imputation from their hepatocyte partners.

### Unique Molecular Identifiers¶

The number of distinct UMIs on a bead in a droplet is at most $4^L$ where $L$ is the number of UMI bases. For example, for 10X Genomics v2 technology $L=10$ and for 10X Genomics v3 technology $L=12$. Melsted, Booeshaghi et al. 2019 show how to estimate the number of the actual distinct UMIs on each bead for which data is obtained in a scRNA-seq experiment.

## Summary¶

Selection of a single-cell RNA-seq method requires choosing among many tradeoffs that reflect the underlying technologies. The table below, from From Zhang et al. 2019. DOI:10.1016/j.molcel.2018.10.020, summarizes the three most popular droplet-based single-cell RNA-seq assays:

The generation of single-cell RNA-seq data is just the first step in understanding the transcriptomes cells. To interpret the data reads must be aligned or pseudoaligned, UMIs counted, and large cell x gene matrices examined. The growth in single-cell RNA-seq analysis tools for these tasks has been breathtaking. The graph below, plotted from real-time data downloaded from the scRNA-seq tools database, shows the number of tools published since 2016.

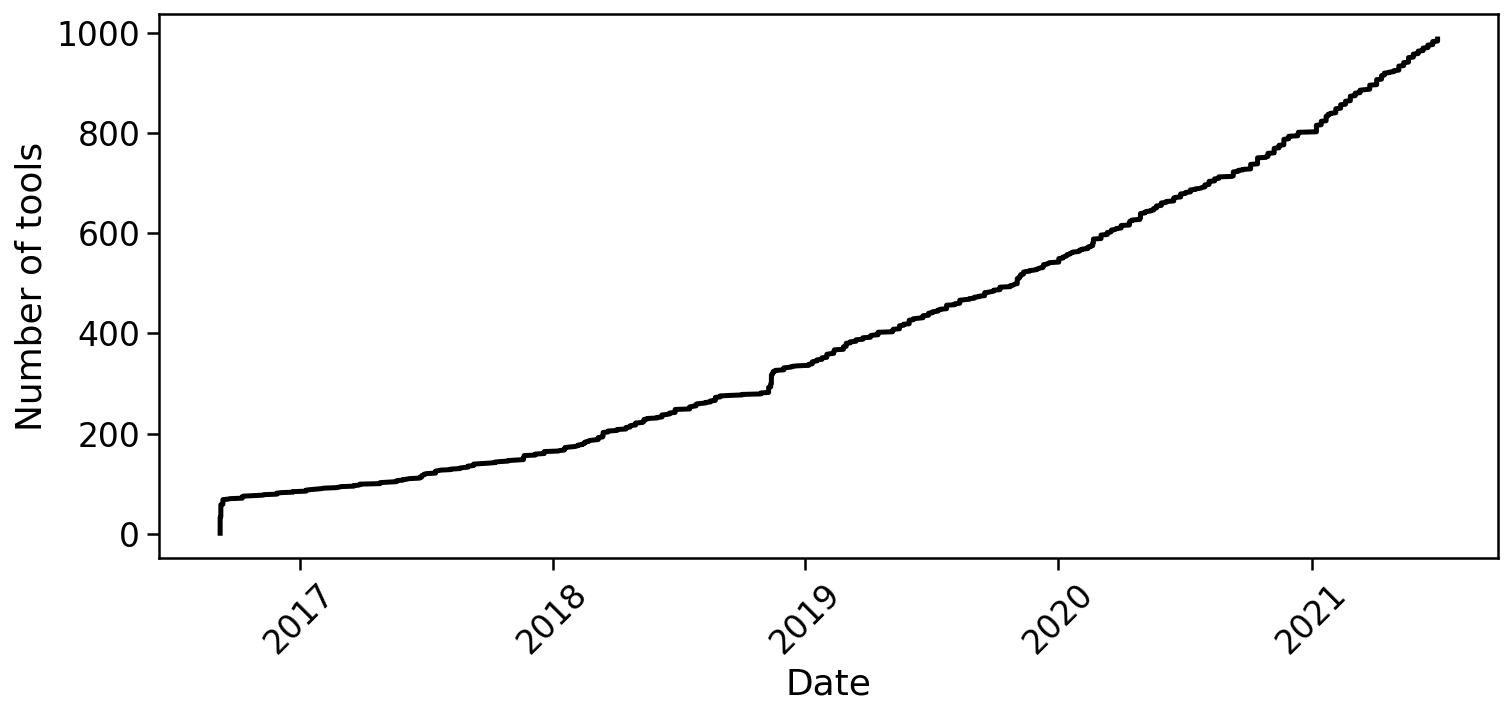

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 #@title Growth of single-cell tools { run: "auto" } tools = pd.read_csv('https://raw.githubusercontent.com/Oshlack/scRNA-tools/master/database/tools.tsv', sep='\t') tools["Datetime"] = pd.to_datetime(tools["Added"]) tools = tools.sort_values("Added") tools["count"] = 1 fig, ax = plt.subplots(figsize=(12, 5)) x = tools.Datetime y = tools["count"].groupby(tools.Datetime.dt.time).cumsum() ax.plot(x, y, color="k") ax.set_xlabel("Date") ax.set_ylabel("Number of tools") ax.tick_params(axis='x', rotation=45) plt.show()

In fact, the rate of growth of single-cell RNA-seq tools is similar to that of single-cell RNA-seq studies:

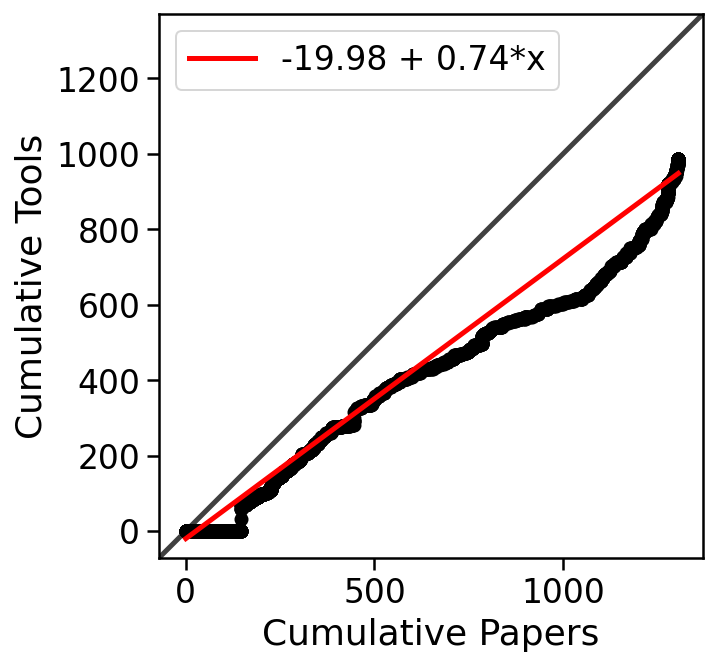

  1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 #@title scRNA-seq tools vs. studies linear regression date_papers = papers.groupby("Datetime")["count"].sum() date_tools = tools.groupby("Datetime")["count"].sum() dates = pd.date_range(start='7/26/2002', end='01/01/2025') combined = pd.DataFrame(index=dates) combined["tool_counts"] = combined.index.map(date_tools) combined["paper_counts"] = combined.index.map(date_papers) combined = combined.fillna(0) combined["Datetime"] = combined.index.values fig, ax = plt.subplots(figsize=(5,5)) x = combined["paper_counts"].groupby(combined.Datetime.dt.time).cumsum() y = combined["tool_counts"].groupby(combined.Datetime.dt.time).cumsum() ax.scatter(x, y, color="k") regr = linear_model.LinearRegression() x = x.values[:, np.newaxis] regr.fit(x, y.values) xx = np.linspace(0, max(x), 200) yy = regr.intercept_ + regr.coef_*xx ax.plot(xx, yy, color="r", label=f"{regr.intercept_:,.2f} + {regr.coef_[0]:,.2f}*x") lims = [np.min([ax.get_xlim(), ax.get_ylim()]), # min of both axes np.max([ax.get_xlim(), ax.get_ylim()])] # max of both axes ax.plot(lims, lims, 'k-', alpha=0.75, zorder=0) ax.set_aspect('equal') ax.set_xlim(lims) ax.set_ylim(lims) ax.set_xlabel("Cumulative Papers") ax.set_ylabel("Cumulative Tools") ax.legend() plt.show()

Next step: to learn how to analyze single-cell RNA-seq data, visit the kallistobus.tools site tutorials site and explore the "Introduction 1: pre-processing and quality control" notebook in Python or R.

Feedback: please report any issues, or submit pull requests for improvements, in the Github repository where this notebook is located.
